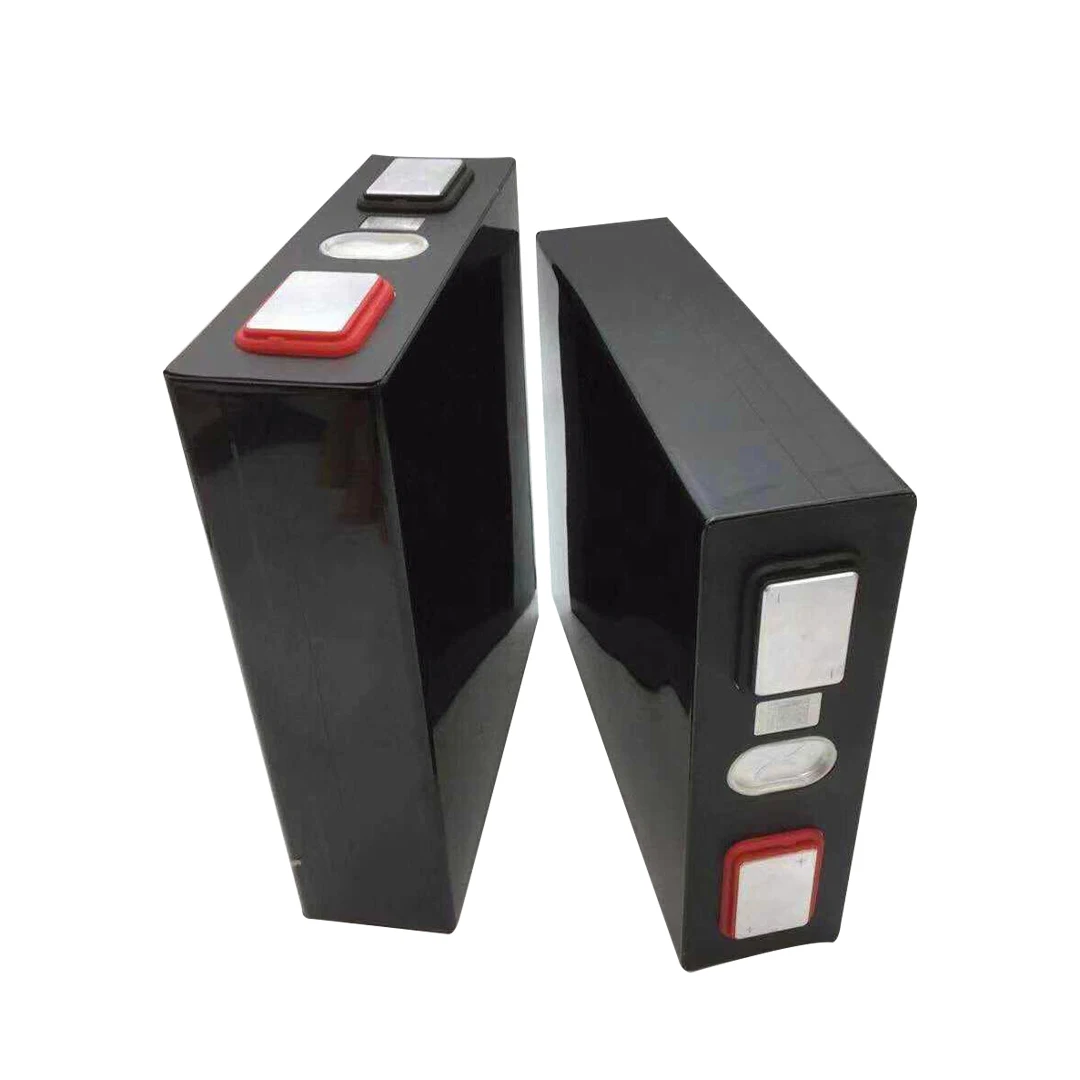

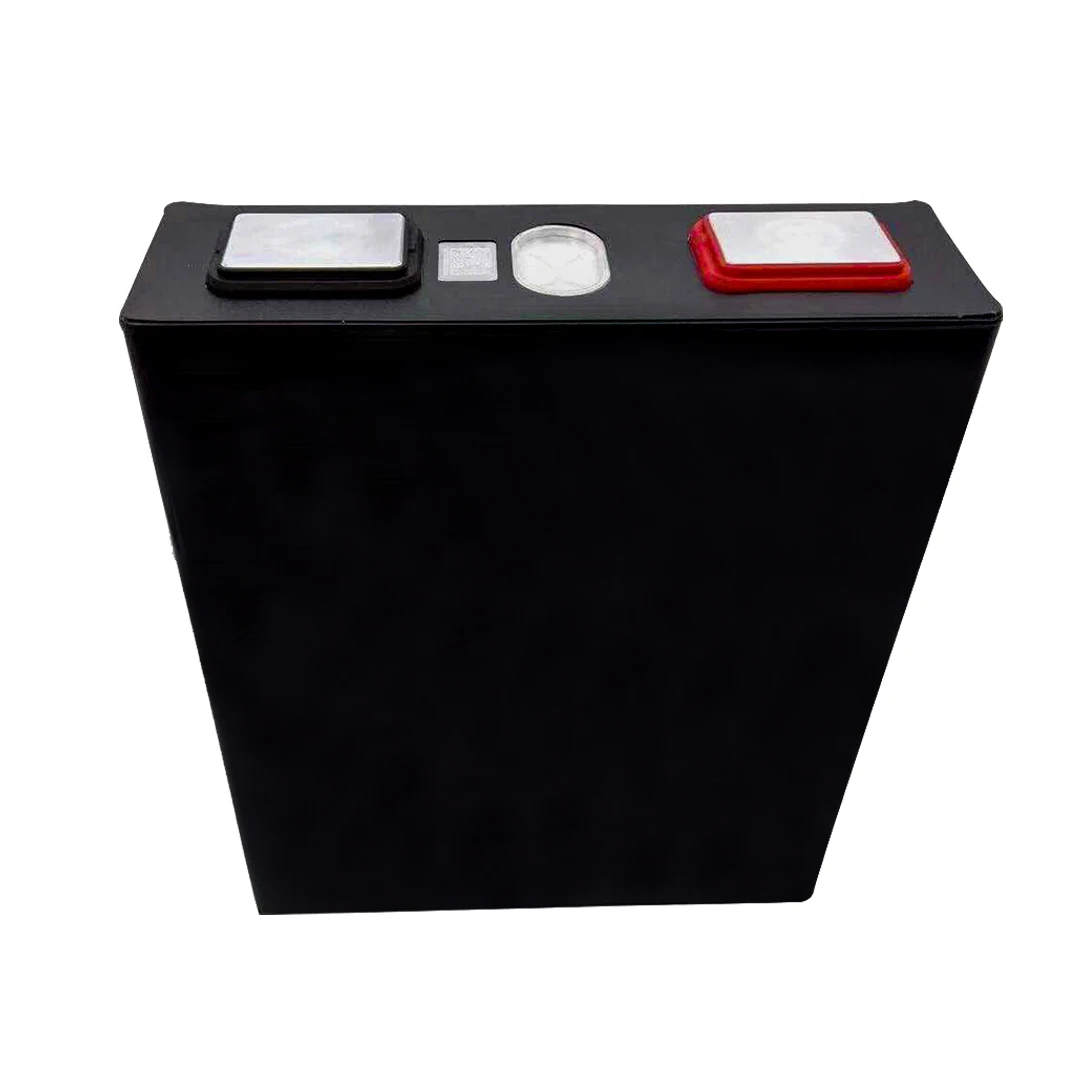

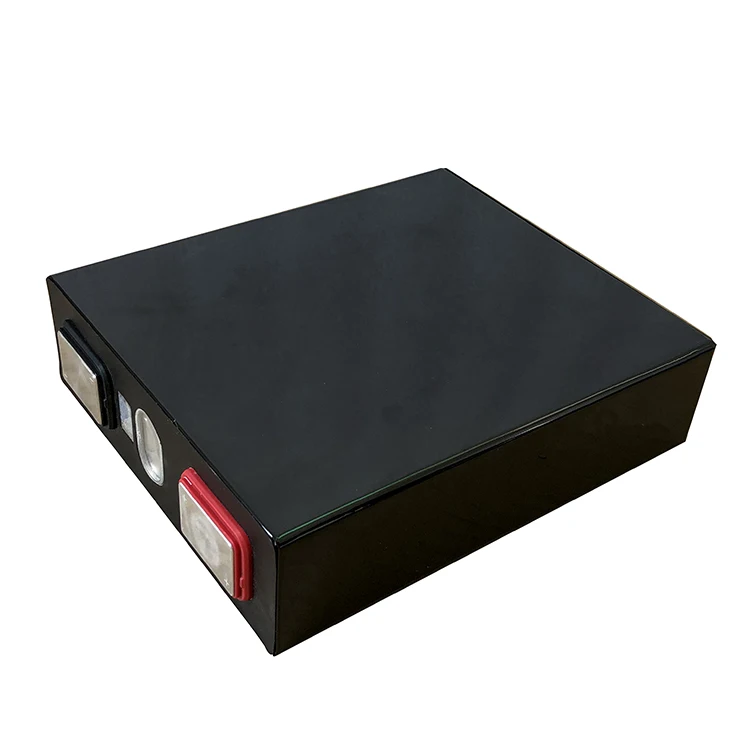

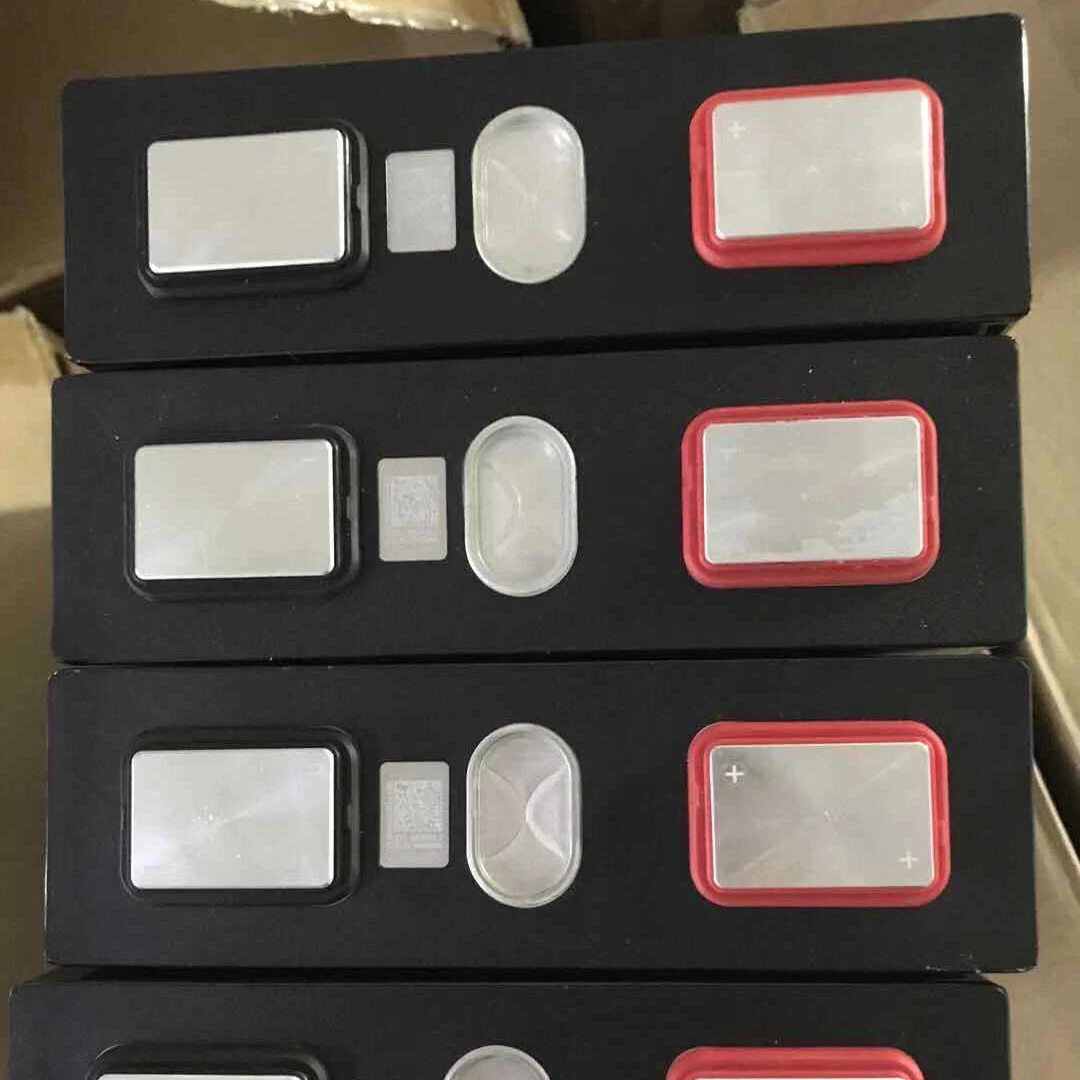

Lithium Iron Phosphate Battery Rechargeable Prismatic 3.2v 202ah

  • 50 - 499 Pieces
    $202.00
  • >=500 Pieces
    $182.00
Battery Type:
Prismatic
Nominal Capacity:
202Ah
Nominal Voltage:
3.2V
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 7 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size:
Lifepo4
Brand Name:
Tafel
Certification:
CE
Model Number:
TF202
Place of Origin:
Jiangsu, China
Weight:
4kg
Product name:
LiFepo4 battery
Cycle life:
2000 Times
Capacity:
202Ah
Voltage:
3.2V
Internal Resistance:
≤ 0.25mΩ
Charging Upper Limit Voltage:
3.65V
Discharging Cut-off Voltage:
2.5V
Storage Humidity:
< 70%
Dimension:
53*173*206mm
Max. Charge Current:
202A
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Plywood Cases
Port
shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 7 10 15 To be negotiated
Product Description
Product Name
 Lithium Iron battery
Model
TF202
Nominal Capacity
202Ah
Operating Voltage
3.2V
Weight
4kg
Dimension
53*173*206mm
Chargcut-off voltage
3.65V
Dischargcut-off voltage
2.8V
Cycle life
2000 Times
Shell Material
Aluminium
Max Constant Charge Current
202A (1C)
Max Continuous Discharge Current
606A(3C)
Charging Upper Limit Voltage
3.65V
Storage Humidity
< 70%
• High lifespan: two thousand cycles and more (see chart) • Deep discharge allowed up to 100 % • Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away, no fire or explosion risks) • Embedded BMS (Battery Management System) : improve lifespan AND secure the battery • No Lead, no heavy metal, no toxic element • Calendar life > 10 years • Excellent temperature robustness (-20 °C up to +60 °C) • Flexible deployment : up to 10 packs in parallel and 4 in serial • Constant power during discharge (very low internal resistance) • Very low Peukert’s losses (energy efficiency >96 %) • Very low self discharge (<3 % per month)> • No memory effect • About 50% lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy • Certification : CE, RoHS, UN 38.3
Related Products
Certifications
Packing&Shipping
Lithium battery is Dangerous Good for shipment by Sea and By air and they should be shipped under regulation of UN3480. All EVL Battery are packaged by DG plywood case and we provide UN38.3 test report and MSDS. please check shipping cost before place order, lithium battery is Dangerous Good, the shipping cost is very different, so please check shipping cost before place order.
Company Introduction
EVL Battery Limited is a leading Lithium Battery manufacturer from China and its a public company in Hongkong Stock Exchange market, there are 4 facotry in Fujian and Guangdong. the production capacity of 4 factory is as much as 20 GWH per year. EVL Battery Limited is Number one Lithium Battery manufacturer from China

Our Services & Strength

We provide high quality EVL Battery to client all over the world and help cleints deliver battery from China to them by sea an by air at reasonable price. and we provide necessary technical support and warranty to you!
FAQ
Q：What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal SLA controller work fine?
A: For LiFePO4 / Lithium-Ion battery, we always recommend using LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead-Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be.

Q：I am a distributor. Can I cooperate with battery warehouse for a long time?
A: Yes, Individual pricing for large scale projects and wholesale demands is available

Q:Why hasn't my ups or FedEx transportation number been updated?
A: This is normal, in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.

Q:Are the cells I bought balanced?
A:we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
