Thundersky winston lifepo4 battery lifepo4 3.2v 100ah prismatic cell

  • 20 - 99 Pieces
    $110.00
  • >=100 Pieces
    $100.00
Battery Type:
Prismatic
Nominal Capacity:
100AH
Nominal Voltage:
3.2V
Samples:
$300.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 5 7 Negotiable
Customization:
Customized packaging (Min. Order: 50 Pieces)
Graphic customization (Min. Order: 50 Pieces)
Report Suspicious Activity
Overview
Quick Details
Application:
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size:
LiFeypo4
Brand Name:
Winston
Certification:
UL/CE
Model Number:
WB-LYP100AHA(A)
Place of Origin:
Fujian, China
Weight:
3.3kg±100g
Nominal Voltage:
3.2V
Size:
143 * 67*218mm
Type:
100Ah LiFePO4 Battery
Internal Resisitance:
≤0.45mΩ
Storage Humidity:
≤75%RH
Operation Voltage:
2.8V~4.0V
Standard Dishcharge Current:
0.5C
Max Charge Current:
3C
Max Discharge Current:
3CA(Constand Current)
Cycle life:
≥5000 Times
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details

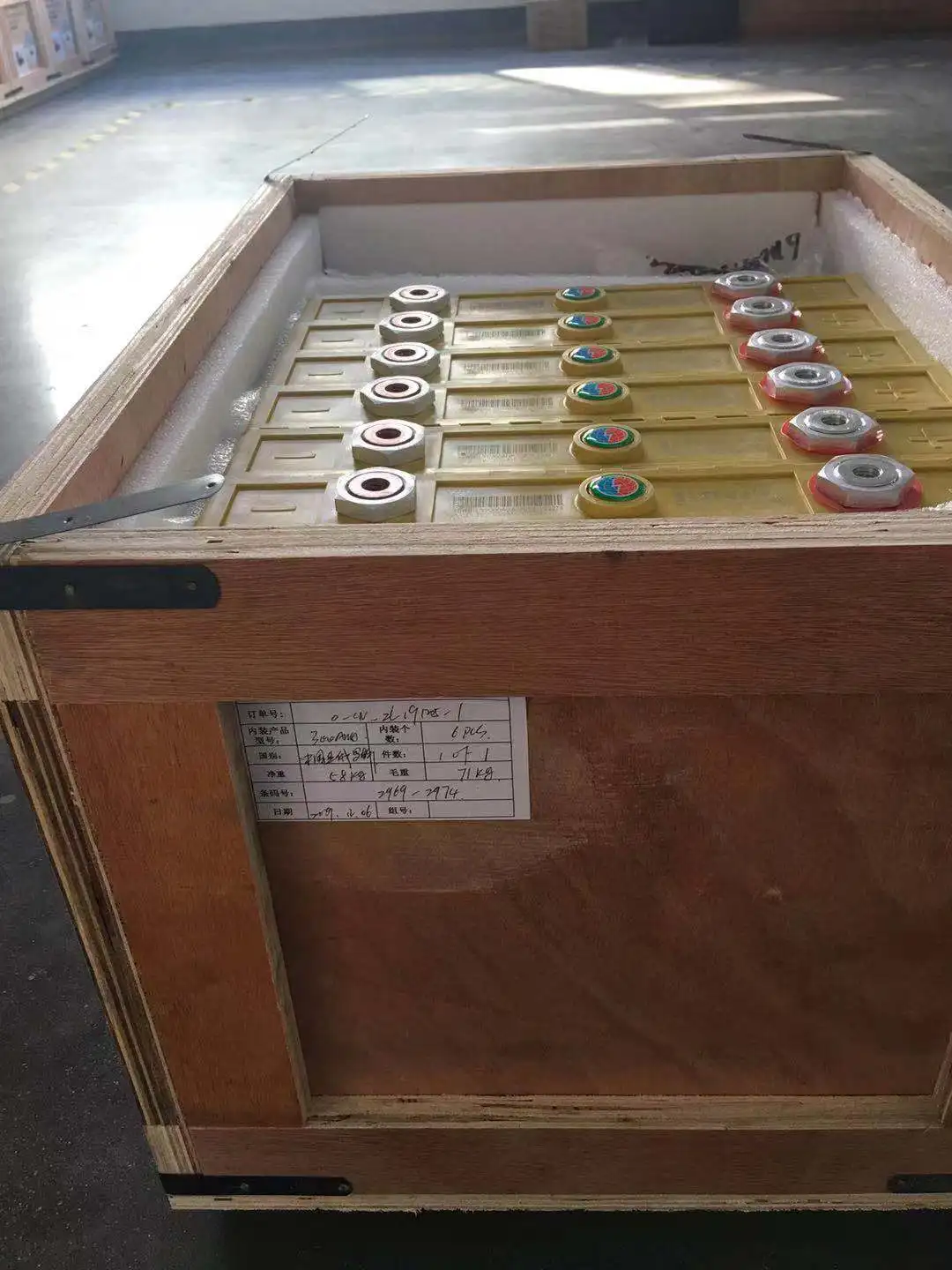

plywood case package, 18pcs 100Ah battery each package and gross weight is around 84kg
Port
Xiamen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 5 7 To be negotiated
Video Description
Product Description

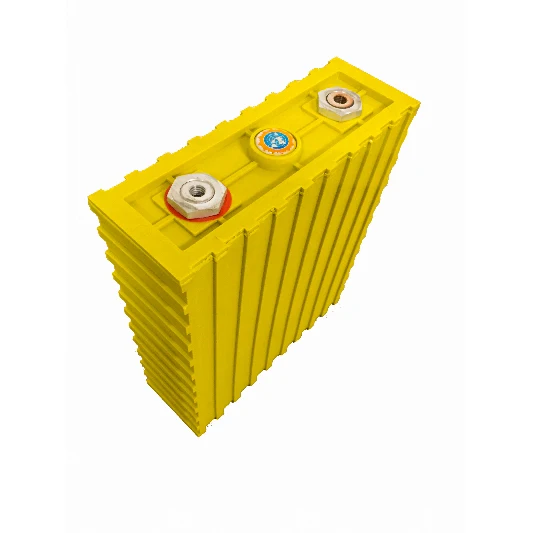

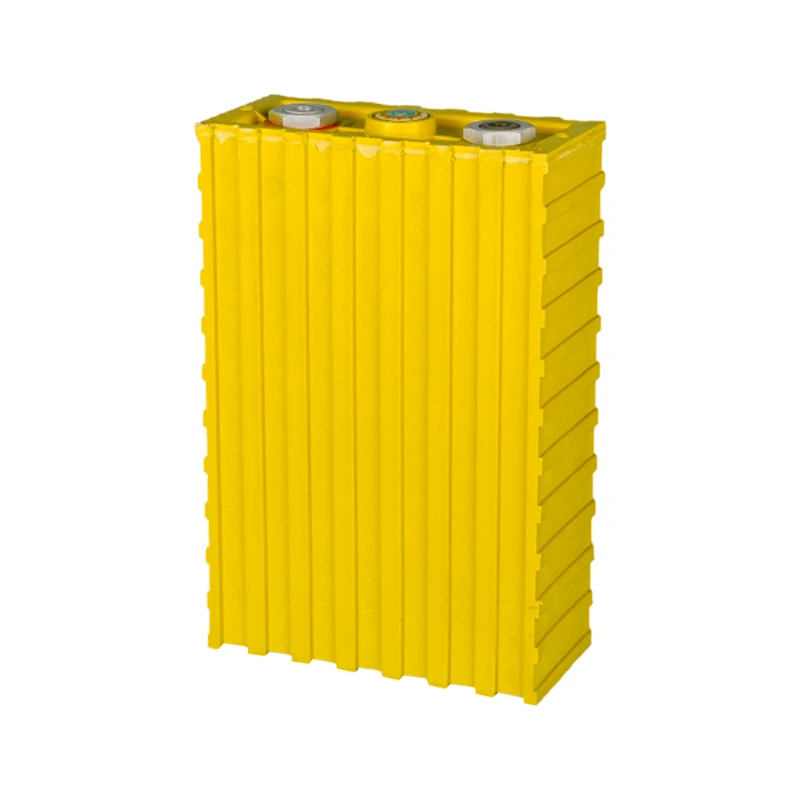

100Ah Thundersky Winston LiFePO4 Battery LiFeYPO4

High power LiFePO4 (LFP) Battery produced for electric vehicles and energy storage system with capacity of 100Ah Winston Battery.

Winston Battery lithium LiFeYPO4 high power cells. - The Winston Battery products offer high power solutions for all kinds of lithium cell applications.


100AH Winston Battery Cell
Model: WB-LYP100AH-A
Nominal Capacity: 100AH
Operating Voltage: 2.8V~4.0V
Weight: 3.3kg±100g

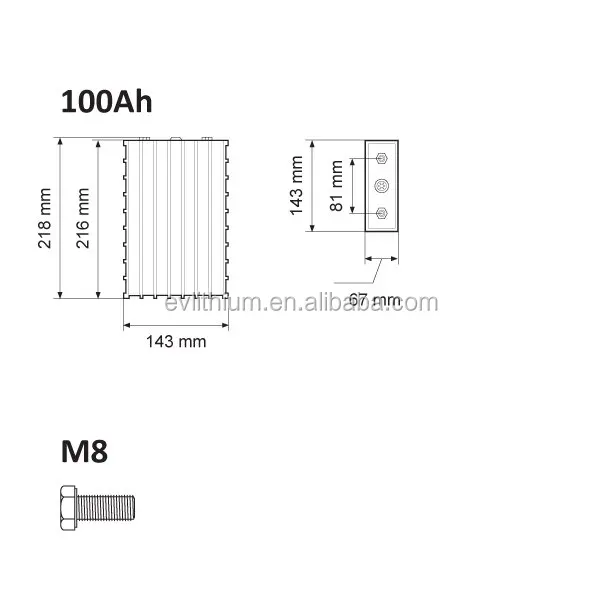

Dimensions: 143*67*218(mm)

Thunder Sky Winston Battery is a high power lithium iron phosphate (LiFePO4) battery. the voltage of each cell is 3.2volt. the capacity is 100 Ampere Hour. Thunder Sky Winston Lithium Ion Battery with a high capacity from 40AH to 10000AH, the batteries can be widely used in Energy Storage System, EV, UPS and so on. Our Lithium Ion Battery have a excellent performance, high stability and long life time.

Winston Battery has become a world leader in Lithium Iron Phosphate for power applications. These batteries are sturdy, with a lifespan measured over 5000 cycles at 80% DOD (depth of discharge). We use these batteries for traction applications (EV, industry, etc..) But also for stationary batteries (Off Grid, Smart Grid, standalone applications, etc..).

Lithium Iron Phosphate cells are used in self-consumption projects requiring high capacity. The high energy stored in these cells also allows traction for heavy vehicles (truck, industrial machinery, marine applications, etc.

Model
TSWB-LYP100AHA(A)
Nominal Capacity
100Ah
Size
143*67*218mm

Operation Voltage
Charge
4.0V
Discharge
2.8V
Internal Resistance
≤0.45mΩ

Max Discharge Current
Constant Current
≤3CA
Impulse Current
≤10CA
Max Charge Current
300(3CA)
Standard Charge/Discharge Current
50A(0.5CA)

Cycle Life
(80%DOD)
≥5000Times
(70%DOD)
≥7000Times
Temperature Durability of Case
≤200℃


Operation Temperature
Charge

-45℃~85℃
Discharge
Storage Humidity
≤75%RH
Self-discharge Rate
≤1%(Monthly)
Weight
3.3kg±100g
Detailed Images
Related Products

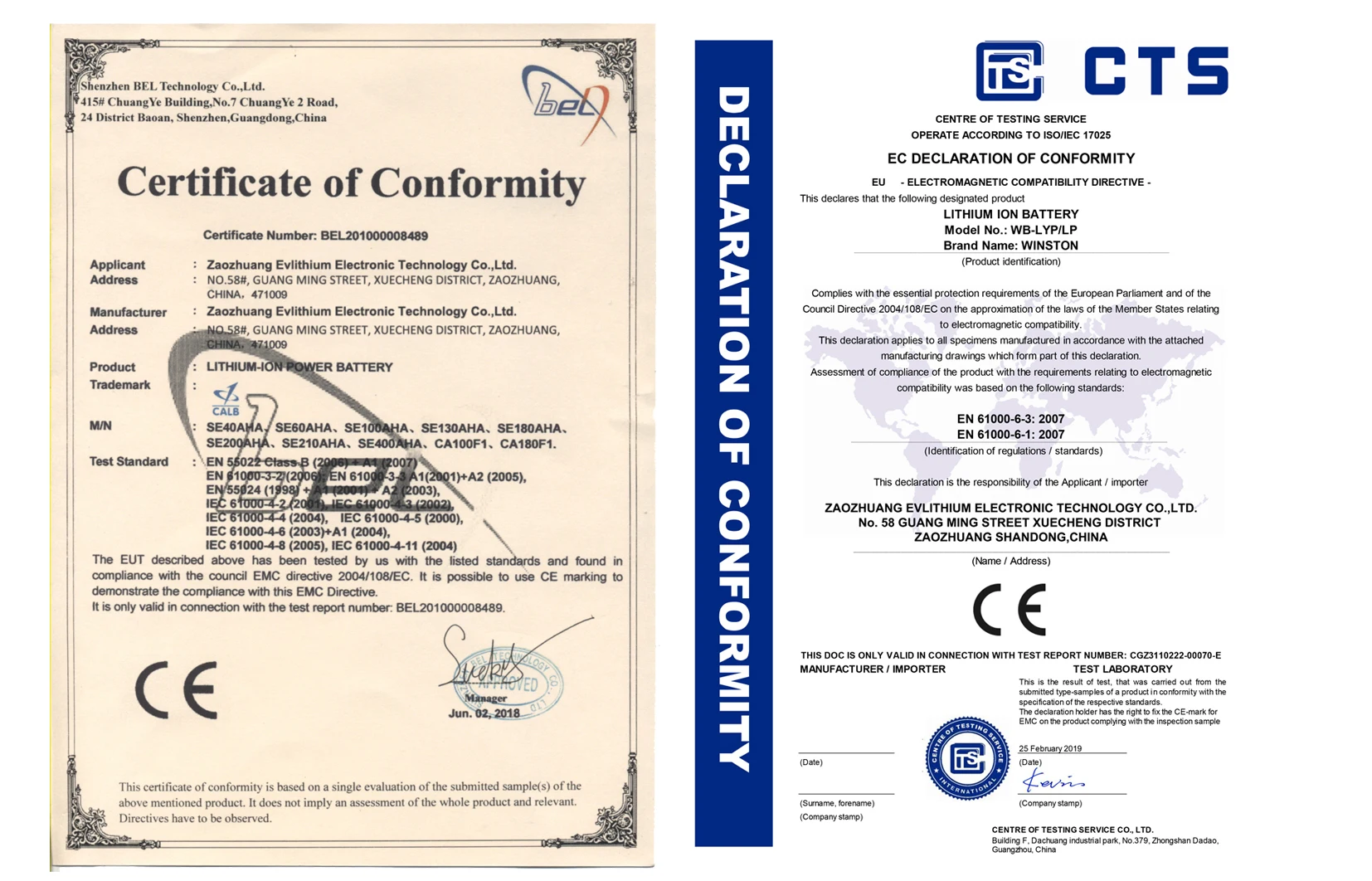

Certifications
Applications
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV,caravan...Back-up system and UPS... Torch LED light emergency light.

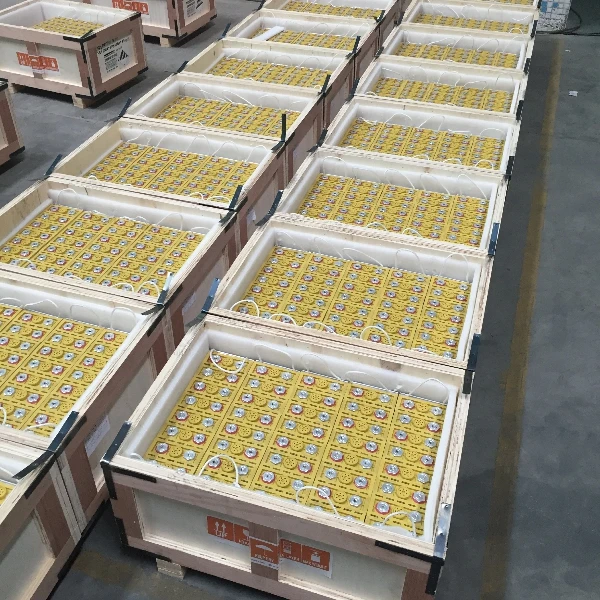

Packing&Shipping

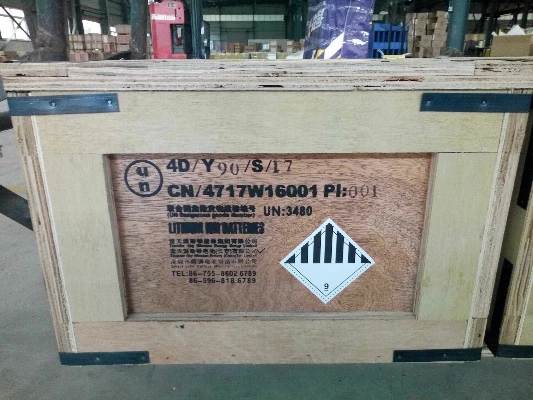

The lithium battery is Dangerous Good for shipment by Sea and By air and they should be shipped under the regulation of UN3480. All EVL batteries are packaged by DG plywood case and we provide UN38.3 test report and MSDS.
Please check shipping cost before place order, the lithium battery is Dangerous Good, the shipping cost is very different, so please check shipping cost before place order.

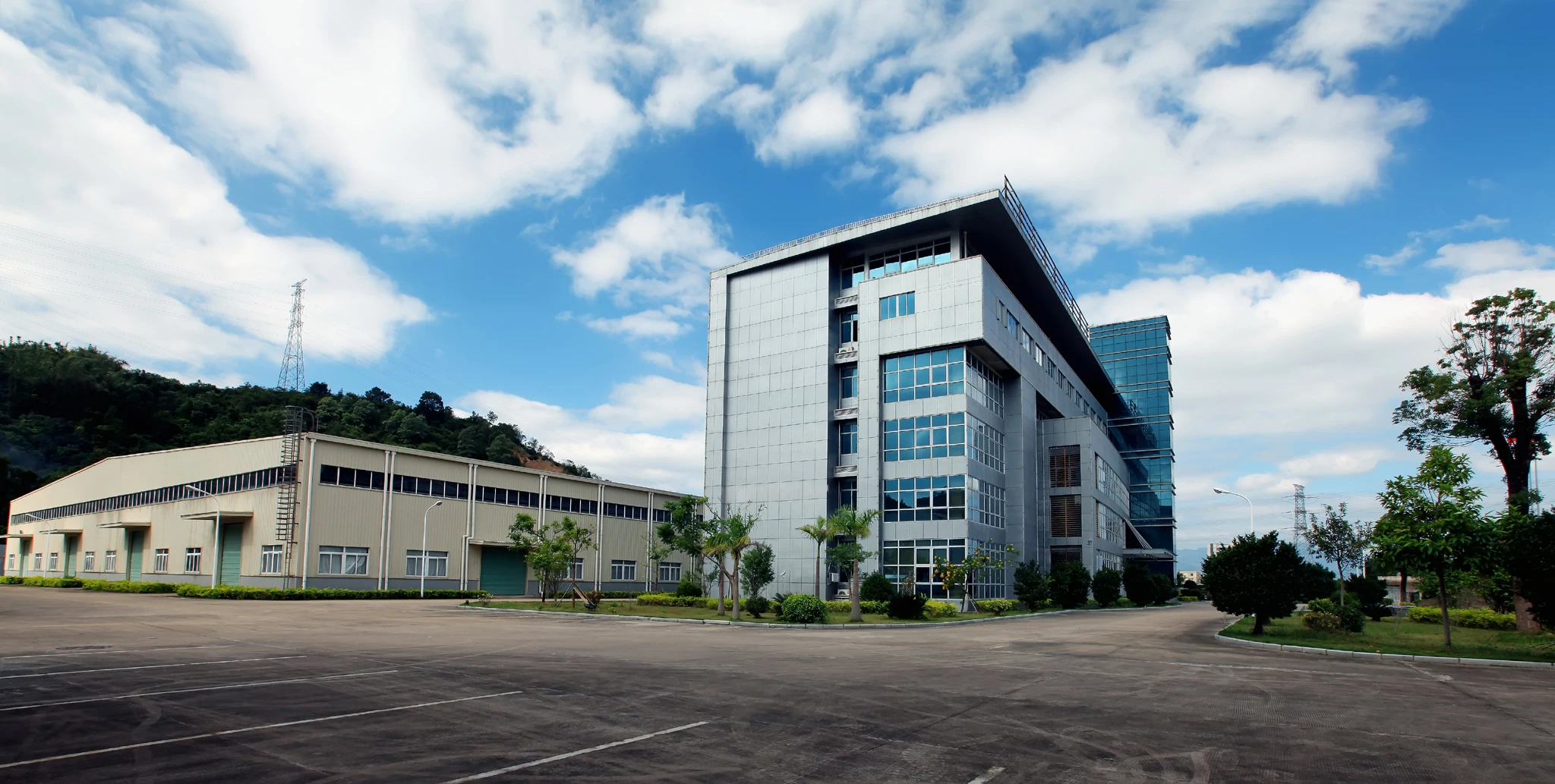

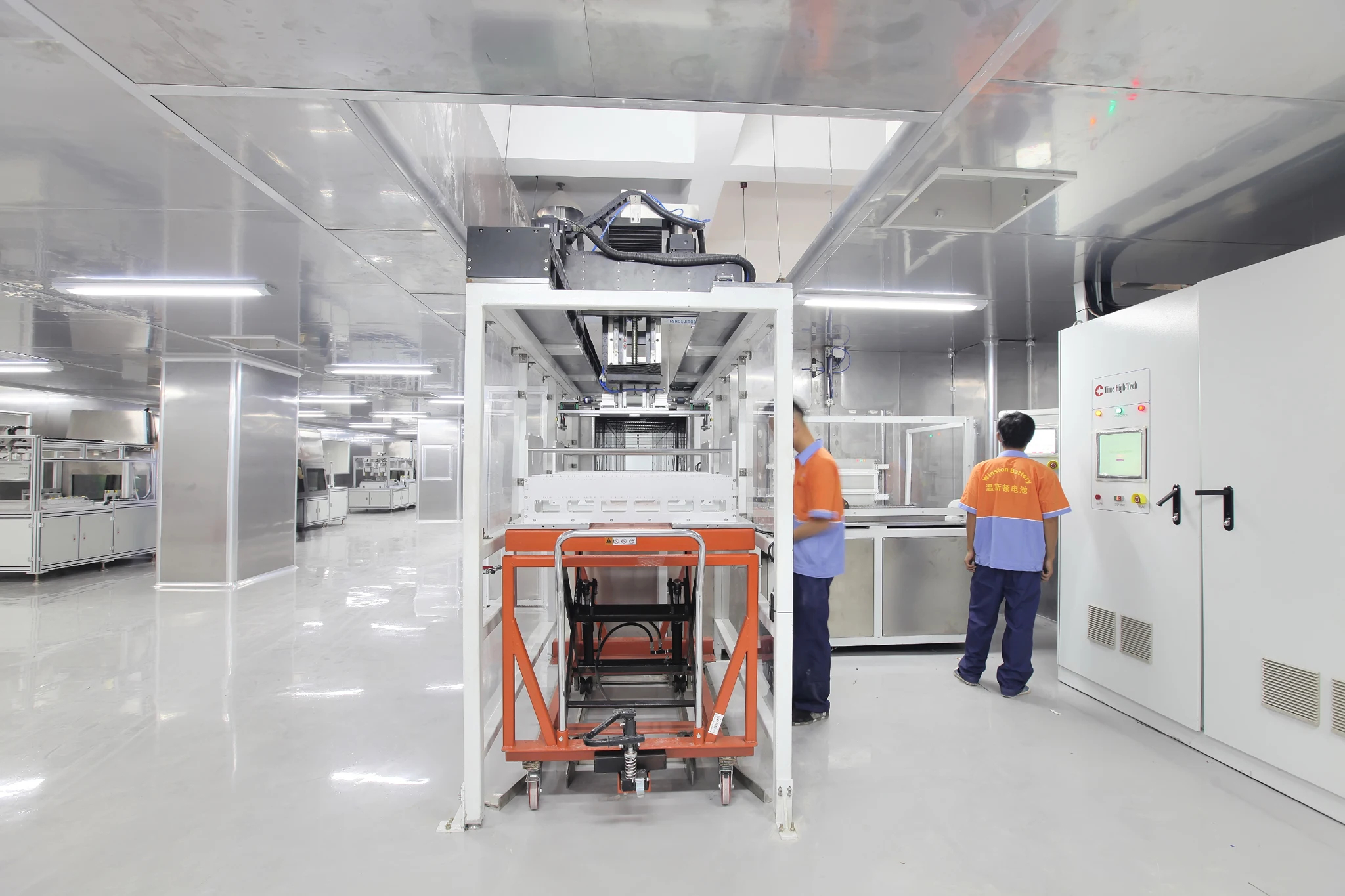

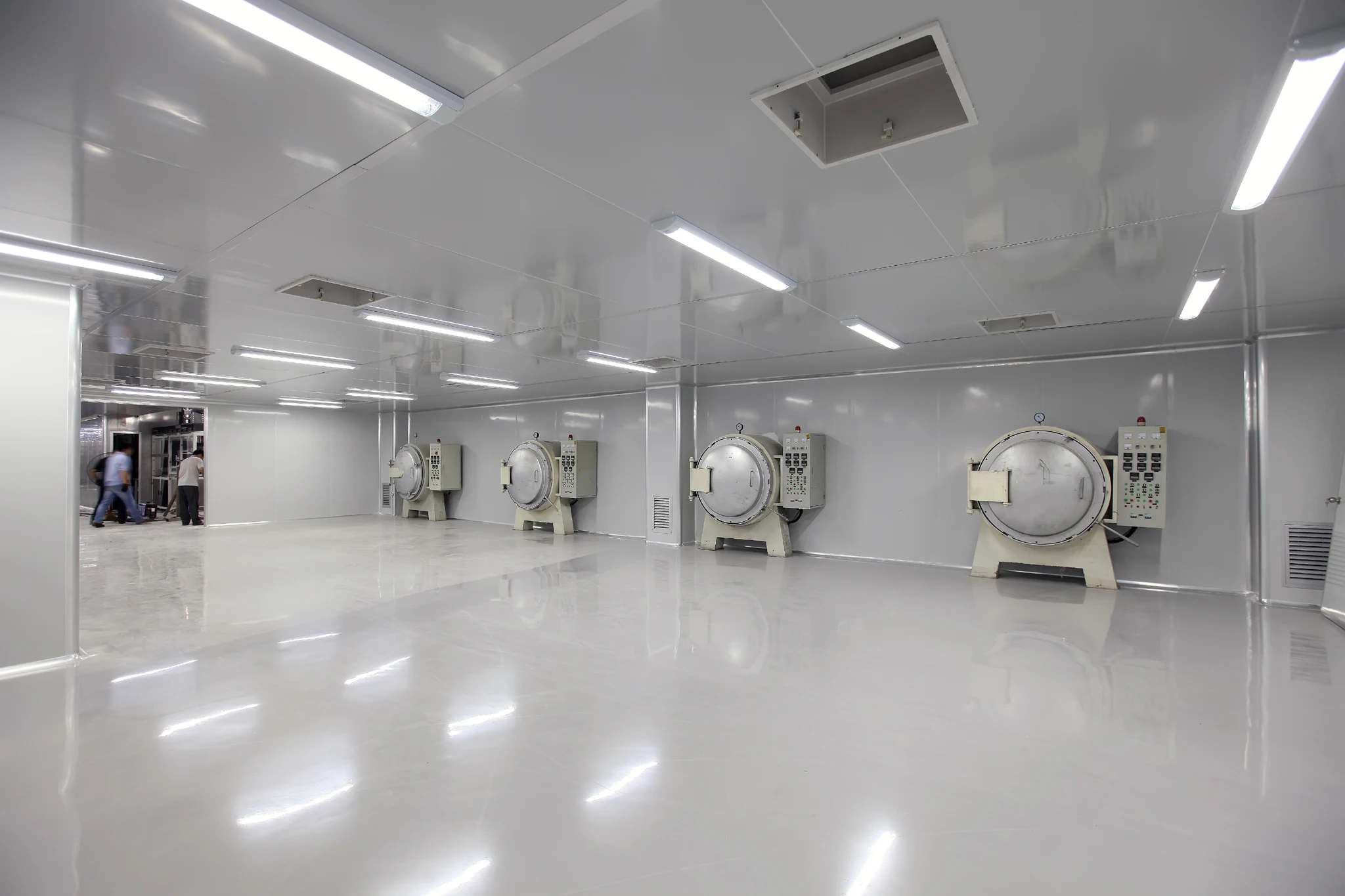

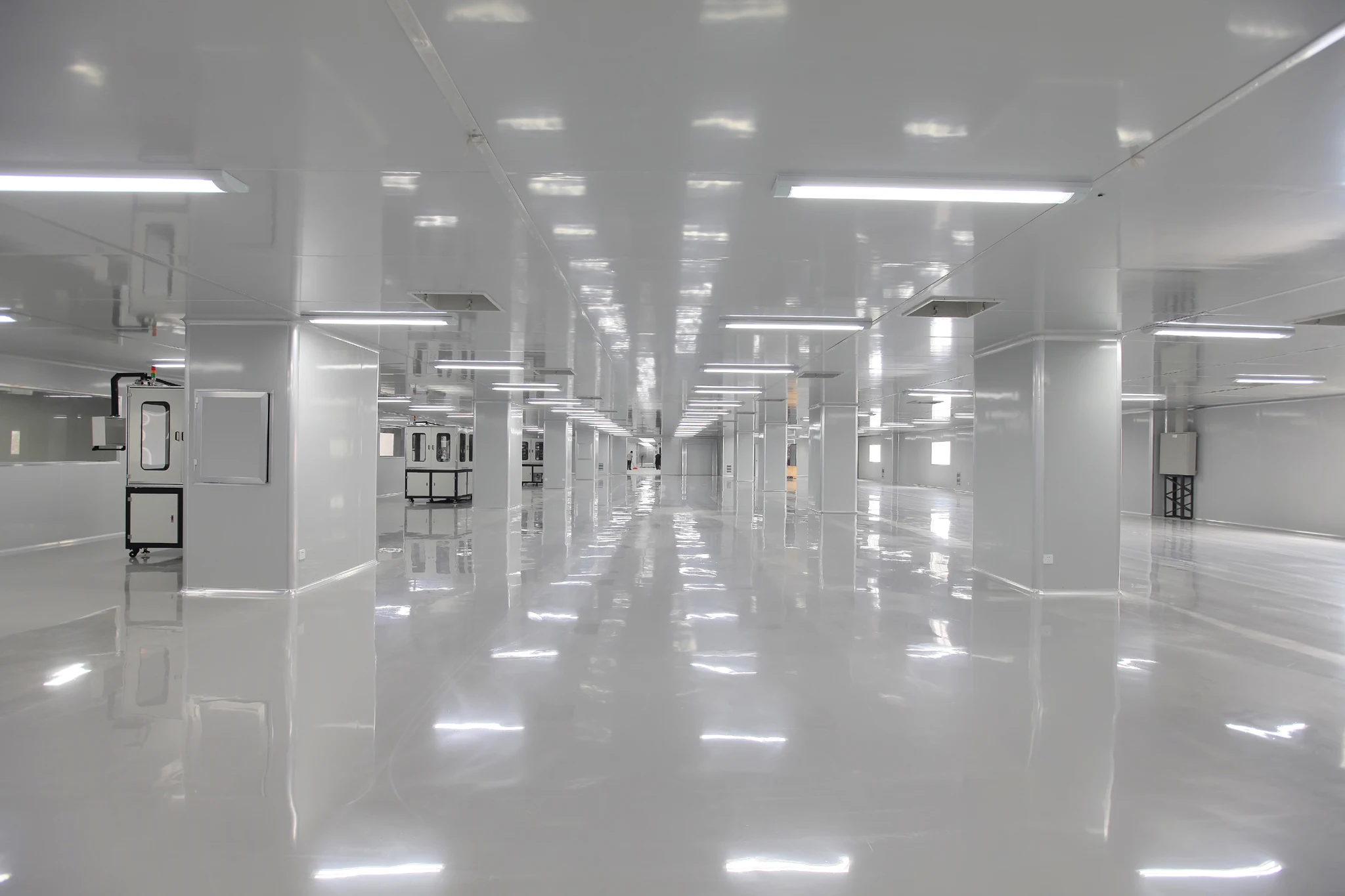

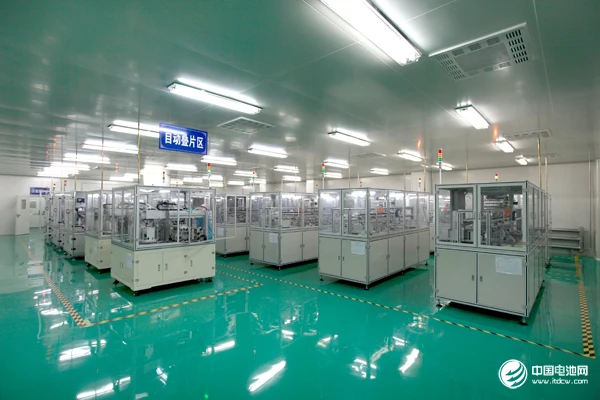

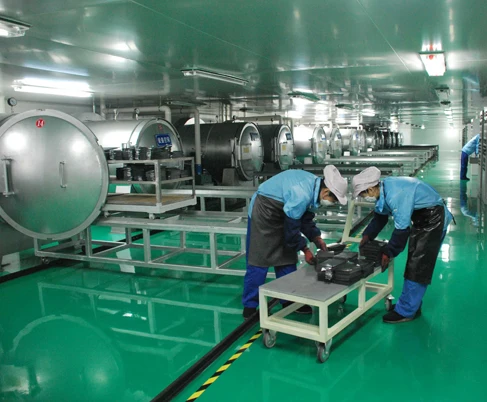

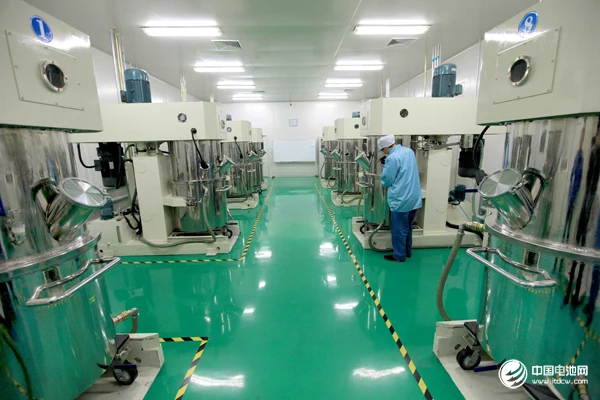

Factory
Thunder sky Winston battery is a leading Lithium Iron Phosphate (LiFePO4) battery producer providing high power lithium-ion battery,which is widely used in electric vehicle, solar power station,energy storage system and marine energy storage project.
Evlithium is official dealer and technical support center and providing local service in European North America and Australia.Evlithium is official leading partner of Thunder Sky Winston LiFePO4 batteries providing sales,technical support and shipping service.There are 40Ah-1000Ah high power Winston LiFePO4 battery for EV and energy storage application.

Company Introduction
EVL Battery Limited is a leading Lithium Battery manufacturer from China and its public company in the Hongkong Stock Exchange market. There are 4 factories in Fujian and Guangdong.
The production capacity of 4 factories is as much as 20 GWh per year. EVL Battery Limited is the number one Lithium Battery manufacturer from China.

Our Services & Strength

We provide high-quality EVL Battery to clients all over the world and help clients deliver battery from China to them by sea and by air at a reasonable price. and we provide necessary technical support and warranty to you!
FAQ
Q:What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal SLA controller work fine?
A: For LiFePO4 / Lithium-Ion battery, we always recommend using LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead-Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be.

Q:I am a distributor. Can I cooperate with battery warehouse for a long time?
A: Yes, Individual pricing for large scale projects and wholesale demands is available

Q:Why hasn't my ups or FedEx transportation number been updated?
A: This is normal, in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.

Q:Are the cells I bought balanced?
A:we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
